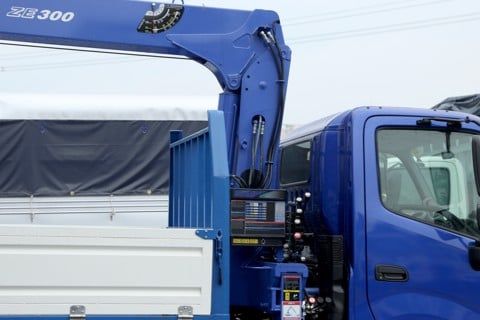

2,5 Ton Hino Crane Truck

Price Contact
  • Physical damage coverage and civil insurance

  • Co operative badge

  • GPS

  • 7 year maintanance

  • Free vehicle checking fee

  • Vehicles instalment 80%

    Cabin Chassis Hino XZU720L

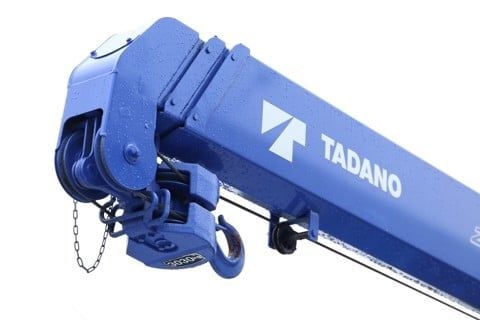

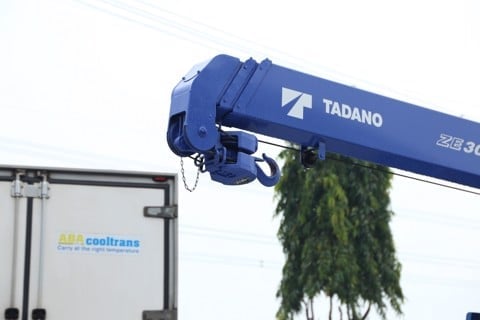

    Cranes Tadano TM - ZE303MH
    Section 3
    Max lifting power 3.030 kg x 2,5 m
    Min lifting popwer 930 kg x 7,5 m
    Total payload 7.500 kg
    Payload after body instalation 2.490 kg
    Inner Dimention 4.600 x 2.030 x 500 mm


Call Now
Total payload (Kg)7.500
TypeDiesel engine, 4-cylinder in-line, turbo- intercooled
Max Power (ISO NET)150 PS - (2,500 round/minutes)
Max Torque (ISO NET)420 N.m - (1,500 round/ minutes)
Bore & Stroke (mm)104 x 118
Steering systemTelescopic and tilt steering column with lock device, recirculation ball integral type
ClutchDry single plate diaphragm type with damper springs, hydraulic control with automatic adjuster
Fuel injectionCommon rail fuel injection system
See more
Series 300 series
Model XZU720L
Gross weight 7.500 kg
Pay load 2.490 kg
Engine model
Diesel engine, 4-cylinder in-line, turbo- intercooled
Max Power (ISO NET)
150 PS - (2,500 round/minutes)
Max Torque (ISO NET)
420 N.m - (1,500 round/ minutes)
Piston displacement (cc)
Fuel injection
Common rail fuel injection system
Crane model
Tadano TM-ZE303MH
Crane capacity
3,030 kg - 2.5 m
