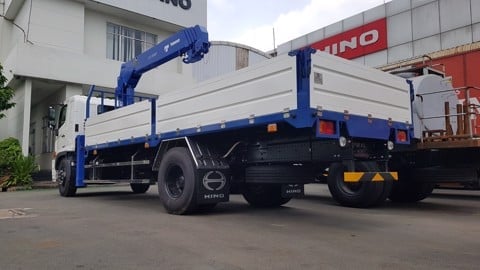

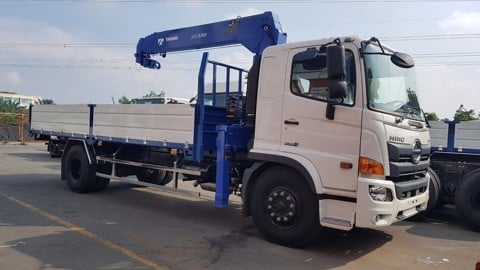

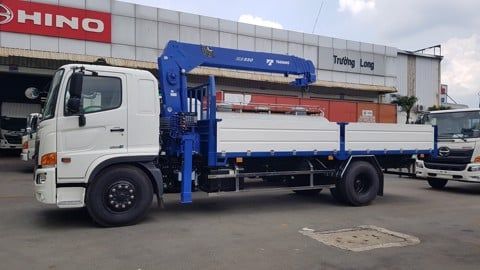

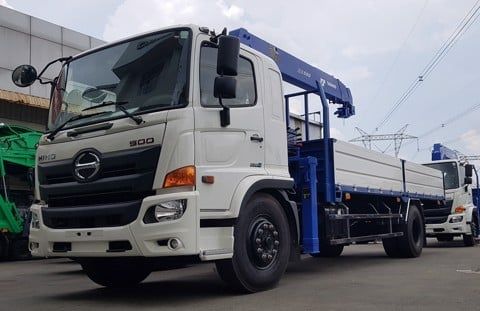

8 Ton Hino Crane Truck
Price Contact
Promotion
-
Physical damage coverage and civil insurance
-
Co operative badge
-
GPS
-
7 year maintanance
-
Free vehicle checking fee
-
Vehicles instalment 80%
Cabin Chassis Hino FG8JP7A Cranes Tadano TM - ZE555MH Section 5 Max lifting power 5.050 kg x 2,5 m Min lifting popwer 650 kg x 13,2 m Total payload 15.650 kg Payload after body instalation 6.700 kg Inner Dimention 6.470 x 2.340 x 650 mm
-
Hotline:0906 72 0101
-
Email: info@truonglong.com
-
Facebook: Hino Trường Long
| Total payload (Kg) | 15.650 |
| Engine | J08E - WE |
| Type | Diesel engine HINO J08E-WE, 6-cylinder in-line, turbo charged and intercooled |
| Max Power (ISO NET) | 260 PS - (2,500 round/minutes) |
| Max Torque (ISO NET) | 794 N.m - (1,500 round/ minutes) |
| Bore & Stroke (mm) | 112 x 130 |
| Steering system | Telescopic and tilt steering column with locking device, recirculating ball with hydraulic booster intergral type |
| Clutch | Dry single plate with damper springs, hydraulic with air booster |
| Fuel injection | Electronic control common rail type |
| Series | 500 series |
| Model | FG8JP7A |
| Gross weight | 15.650 kg |
| Pay load | 6.700 kg |
| Engine model |
Diesel engine HINO J08E-WE, 6-cylinder in-line, turbo charged and intercooled
|
|
Max Power (ISO NET)
|
260 PS - (2,500 round/minutes)
|
|
Max Torque (ISO NET)
|
794 N.m - (1,500 round/ minutes)
|
|
Piston displacement (cc)
|
7.684
|
|
Fuel injection
|
Electronic control common rail type
|
|
Crane model
|
Tadano TM-ZE555MH
|
|
Crane capacity
|
5,050 kg - 2.5 m
|
|
Hook Stowing Device
|
Mechanically stowed beneath boom top portion
|
